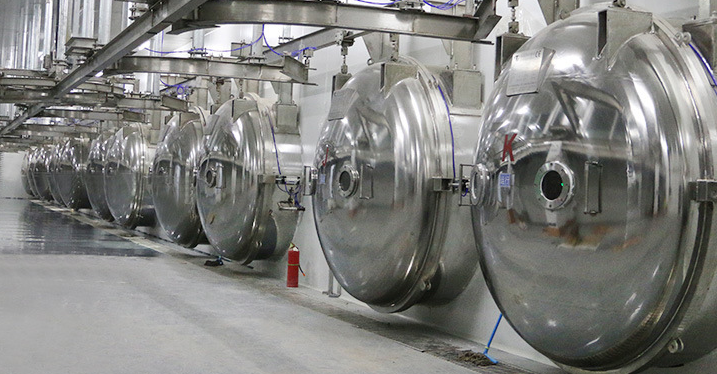

How to Maintain Lyophilizers for Long-Term Use?

Vacuum System Maintenance for Consistent Lyophilizer Performance

Oil changes, seal inspections, and oil mist eliminator replacement

Keeping up with regular oil changes helps maintain pump performance since dirt and debris in the system can mess with the oil's thickness over time. Most folks should change their lubricant somewhere between three to six months, though always check what the equipment maker recommends first. Don't forget to look at those seals every quarter too. When they start cracking or warping, they let air escape which makes lyophilization take longer sometimes by as much as thirty percent. Oil mist eliminators need replacing once a year generally speaking. If they get too full, they'll start spitting oil particles into the exhaust, causing extra corrosion on pumps and messing up filters further down the line. Try fitting all these maintenance jobs into a schedule that works around when production naturally slows down, so everything runs smoothly without major interruptions.

Dry-scroll pump care and vacuum efficiency validation testing

Oil free dry scroll pumps need regular maintenance to keep running smoothly. Clean those scroll surfaces every six months or so with whatever solvent the manufacturer recommends for getting rid of all that pesky particulate buildup. Also check those cooling fans and thermal sensors once a quarter to avoid problems with overheating. When it comes to vacuum efficiency, run monthly tests by timing how long it takes to reach 100 mTorr. If there's a delay of more than 15% compared to what's normal, that usually means there are either leaks forming somewhere or parts starting to wear out. Keep records of complete pressure curves from these tests too. Looking at these over time helps spot patterns in performance that might signal trouble ahead, letting technicians fix issues before they become serious breakdowns.

Refrigeration System Care to Sustain Lyophilizer Cooling Capacity

Leak detection, coolant level management, and condenser cleaning

Checking refrigerant lines with electronic leak detectors on a quarterly basis is important stuff. Even small leaks can cut down cooling efficiency by around 15% each year, which adds up over time. For coolant levels, weekly checks with both eyes and calibrated gauges work best. Most manufacturers will tell us their ideal range, so staying within plus or minus 5% makes sense for keeping things running smoothly. Don't forget those condenser coils either. Give them a good cleaning every three months with soft brushes designed specifically for this job. Particles build up there pretty quickly, and when they do, we're talking about wasting anywhere between 20% to 30% more energy than necessary in industrial cooling setups. That kind of waste really eats into operational costs if left unchecked.

Compressor health monitoring and preventative cold trap maintenance

Check compressor oil twice a year along with running vibration tests to catch signs of wear early on. Look out for metal particles in the oil that go above 15 parts per million as a warning sign. When it comes to cold traps, make sure to run defrost cycles once a month and take a good look at those rubber gaskets during regular maintenance checks. Brittle seals are a real problem because when they fail, ice builds up about 40% faster and this can happen within just 60 hours of operation. Monthly checks of refrigerant pressure differences compared to standard readings help spot problems long before anything actually breaks down in the system.

Control System & Sensor Calibration for Reliable Lyophilizer Process Control

Accurate process control is foundational to lyophilizer performance—directly impacting product quality, cycle consistency, and regulatory compliance. Temperature and pressure sensors require rigorous calibration protocols to prevent costly deviations. Uncalibrated sensors drift 1–2% annually, risking non-compliance with ISO/IEC 17025 requirements. Best practices include:

• Quarterly validation against NIST-traceable references
• Pre-calibration inspections for contamination, physical damage, or moisture ingress
• Documentation of as-found/as-left data to support audit readiness

Control system integrity extends beyond sensors. Firmware updates address security vulnerabilities while maintaining continuity through ATS (Automatic Transfer Switch) systems. Data verification protocols should include:

These measures prevent data loss incidents that cost pharmaceutical manufacturers an average of $740,000 (Ponemon Institute, 2023). Redundant storage at geographically dispersed sites further mitigates operational risk.

Chamber, Door Seals, and Gasket Integrity to Ensure Vacuum Stability and Sterility

When seals on lyophilizers fail, they pose serious risks to the entire freeze drying process. Tiny leaks can mess up the vacuum stability and create problems with maintaining sterility during those crucial freeze dry cycles. Industry data shows that about two thirds of all vacuum issues in pharma settings come down to faulty gaskets. This means lost products, potential contamination, and rejected batches that nobody wants to see happen. Monthly checks for pressure decay are recommended to catch any drops above the 1.25% threshold we typically expect each week. Door gaskets showing signs like cracks, compression set, or hardened surfaces need replacing right away. Old rubber materials let moisture sneak in which throws off the delicate sublimation process and breaks down the sterile environment. Studies looking at sterilization processes have shown that even small flaws in these seals can become breeding grounds for microbes. That's why regular integrity checks aren't just good practice but absolutely necessary for keeping operations running smoothly and meeting all those regulatory requirements.

Routine Cleaning, Lubrication, and Preventive Maintenance Schedules for Lyophilizer Longevity

Disciplined maintenance directly extends functional lifespan while preserving performance accuracy—critical for sensitive pharmaceutical applications.

Chamber and shelf decontamination best practices

Post-process sterilization eliminates biological residues that compromise product purity. Use validated vaporized hydrogen peroxide (VHP) cycles between batches, supplemented by weekly manual wipe-downs with non-abrasive, low-residue cleaners. Document all procedures to meet ISO 14644-1 Class 5 cleanroom standards—ensuring particulate counts remain below 3,520 particles/m³ for ≥0.5 µm contaminants.

Lubrication of mechanical components and electrical safety verification

Lubricating guide rails, bearings, and door mechanisms every three months helps avoid problems caused by excessive friction. When applying lubricant, stick with FDA approved synthetics and use proper dispensing equipment. Too much grease actually draws in dirt particles and can speed up wear by almost 20%, according to research published in Tribology International last year. While doing maintenance work, don't forget to check electrical panels for dielectric properties and test those ground fault circuit interrupters too. This extra step reduces the chance of dangerous arc flashes when working with high voltage systems, which is something no one wants to deal with on site.

Proactive maintenance scheduling reduces unplanned downtime by 40% and extends equipment service life beyond 15 years—validated through lifecycle analysis of industrial freeze-drying systems.
